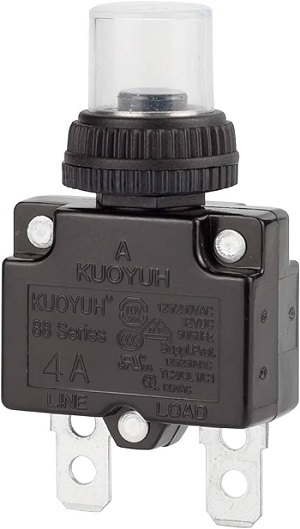

KUOYUH 88 Series Quick Connect Terminals Push-to-Reset Thermal Circuit Breaker with Transparent Waterproof Button Dust Cover

KUOYUH 88 Series Quick Connect Terminals Push-to-Reset Thermal Circuit Breaker with Transparent Waterproof Button Dust Cover

$14.95

  • Ratings Current Rating : 3A-25A; Input voltage rating : 125/250VAC; 32/50VDC; Interrupting Capacity : 125/250VAC x 1,000A(UL 1077)
  • Testing Performed Current Test : 200% current full-inspect test Dielectric Strength Test : 1500VAC/min Glow-wire test : 850°
  • Safety Certification Electrical appliances certification : UL, CSA, CB, VDE, TUV, CCC, SAA, KC Environmental standards : RoHS, REACH
  • Key Features: Following UL1077 Standard, EN60934 Standard ,IEC60934 Standard. Comply with UL1500 ignition protection. (Cadmium free contacts)Comply with European environmental protection requirements. Use bakelite as the main body. High temperature resistance. High security. Trip Free Cycling
Amperage
Choose Quantity
+ Add to Cart
