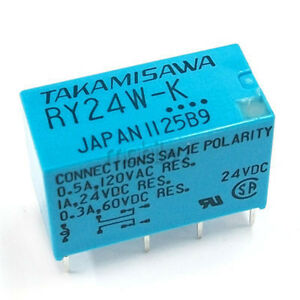

RY24W-K 24 Volt Relay
$4.99
24V, 1A RELAY
Choose Quantity
Product Details
Ultra high sensitivity
UL, CSA recognized
Conforms to FCC rules and regulations Part 68
Surge strength 1,500 V
High dielectric strength type available (RY-WF type)
Contact arrangement MBB type available (RY-D type)
High reliability-bifurcated contacts
Wide operating range
DIL pitch terminals
Plastic sealed type
Contact Rating: 1A
Contact Form: 2c
Connection: PCB TH
Coil Voltage: 24 VDC
Dimension: 9.8 x 20.2 x 12.5mm
Size: Small
Contact Material: Gold overlay silver-palladium
Nominal Power: 150 mW
Dielectric Strength:
Open Contact - 500 VAC
Coil and Contact - 1,000 VAC
UL, CSA recognized
Conforms to FCC rules and regulations Part 68
Surge strength 1,500 V
High dielectric strength type available (RY-WF type)
Contact arrangement MBB type available (RY-D type)
High reliability-bifurcated contacts
Wide operating range
DIL pitch terminals
Plastic sealed type
Contact Rating: 1A
Contact Form: 2c
Connection: PCB TH
Coil Voltage: 24 VDC
Dimension: 9.8 x 20.2 x 12.5mm
Size: Small
Contact Material: Gold overlay silver-palladium
Nominal Power: 150 mW
Dielectric Strength:
Open Contact - 500 VAC
Coil and Contact - 1,000 VAC
