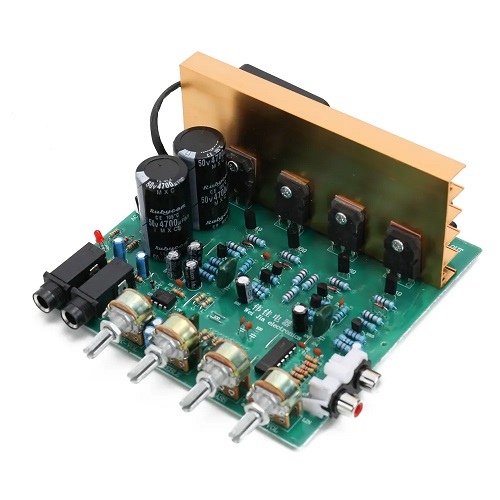

DX-2.1 100W+100W Amplifier Board
$39.95

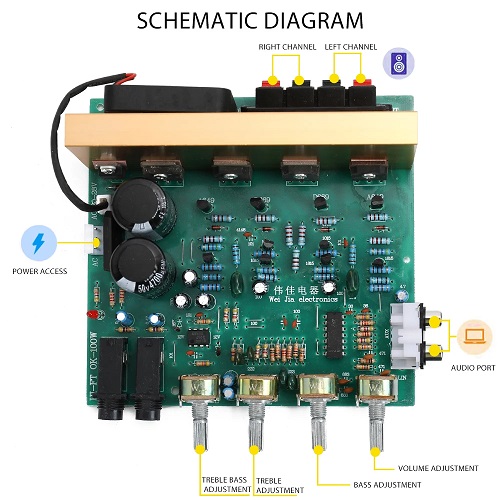

The board uses four power transistors responsible for the left and right channels.
Features:
1. Compact structure, full function and air-cooled heat dissipation.
2. Low frequency, fine sound quality, suitable for home or theater.
3. Large power is more stable, the board uses four disassemble amplifier tubes(used), 4 responsible for the left and right channels.
4. Four chips, all-dimensional protects, air-cooling fin and heat transfer fan.
5. Boot delay and instantaneous shutdown.
6. Short circuit and overload protects.
7. Used prime NICHICON large capacitance make the sound exquisite and pleasant to listen to.
Specifications:
Model: DX-2
Working Voltage: AC18V-24V
Right and Left Channel Output: 100W+100W
Frequency Response: 20HZ-30KHz
Distortion Factor: 1%
Item Size: 160 * 150 * 60mm / 6.3 * 5.9 * 2.4in
Package Size: 160 * 155 * 65mm / 6.3 * 6.1 * 2.6in
Item Weight: 280g / 9.9ounce
Package Weight: 330g / 11.6ounce
Features:
1. Compact structure, full function and air-cooled heat dissipation.
2. Low frequency, fine sound quality, suitable for home or theater.
3. Large power is more stable, the board uses four disassemble amplifier tubes(used), 4 responsible for the left and right channels.
4. Four chips, all-dimensional protects, air-cooling fin and heat transfer fan.
5. Boot delay and instantaneous shutdown.
6. Short circuit and overload protects.
7. Used prime NICHICON large capacitance make the sound exquisite and pleasant to listen to.
Specifications:
Model: DX-2
Working Voltage: AC18V-24V
Right and Left Channel Output: 100W+100W
Frequency Response: 20HZ-30KHz
Distortion Factor: 1%
Item Size: 160 * 150 * 60mm / 6.3 * 5.9 * 2.4in
Package Size: 160 * 155 * 65mm / 6.3 * 6.1 * 2.6in
Item Weight: 280g / 9.9ounce
Package Weight: 330g / 11.6ounce
