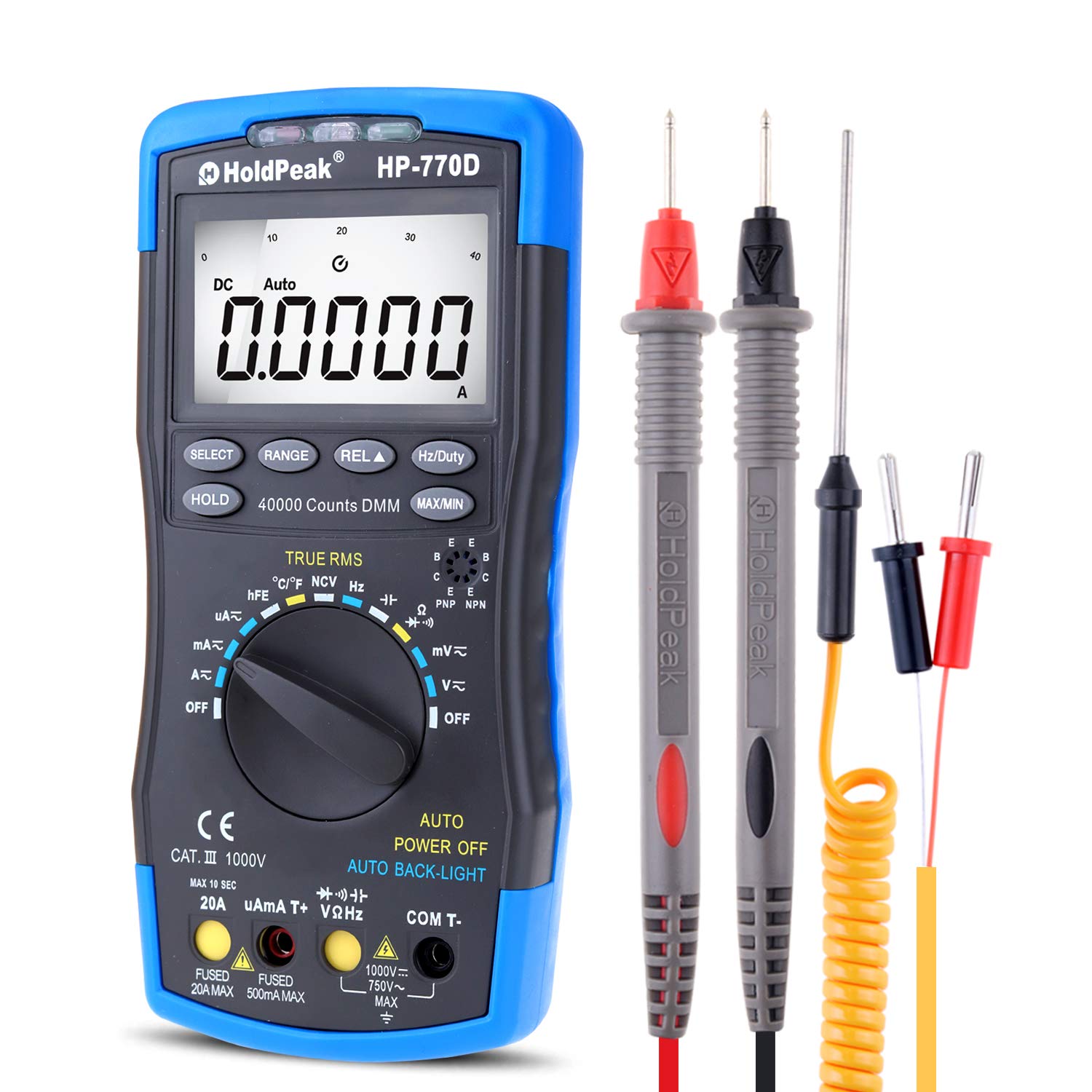

Digital Multimeter HP-770D,TRMS 40000 Counts 1000V Voltmeter Auto-Ranging

Digital Multimeter RQ-770D,TRMS 40000 Counts 1000V Voltmeter Auto-Ranging

$99.50

Digital Multimeter RQ-770D,TRMS 40000 Counts High Precision Measuring Voltage Current

The RQ-770D can be used to measure AC and DC voltages, AC and DC currents, resistance, capacitance, temperature, frequency, duty cycle, triode magnification hFE, diode forward voltage drop and on/off testing, as well as non-contact AC voltage measurement (NCV) with acoustic and visual indication, relative value measurement, data hold, max/min hold, intelligent auto backlight and auto shutdown.

Feature:

Non Contact AC Voltage (NCV)

Max/Min

Auto range

Auto Power/ Off

Relative measurement

LCD back light

Intelligent Automatic Backlight



Specification:

DC Voltage:40mV ~1000V

AC Voltage:40mV ~750V

DC Current:400μA~20A

AC Current:400μA~20A

Resistance:400Ω~40MΩ

Capacitance:99.99nF ~99.99mF

Frequency:9.999Hz ~9.999MHz

Temperature.:-20℃~1000℃ /-4℉~1832℉

VCN test voltage range:90V~1000V AC rms



Tip:

The black test lead should be inserted into the COM hole, and the red test lead  should be inserted into the VΩHzT+ hole(thermometer probe is also)



Package Content

1* RQ-770D Digital Multimeter

1* 9V Battery

1* Manual

2* Test leads(Black&Red )

1* Thermometer Probe (Black&Red )

1* Screwdriver
