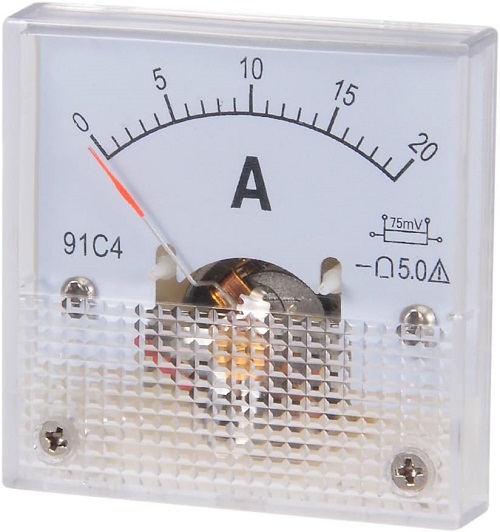

Analog Current Panel Meter DC 0-20A
$14.95
Note:
This ammeter need to work with a 75mV shunt, which is not included here.
The device should not be knocked or shaken.
Measures amper range of 0-20A with accuracy of Class 5.
Clear and easy to read scale and a button for fine tuning the dial.
Needle Ampere Panel Meter for electronic applications or other Voltage measurement devices.
Specifications:
Product Name : Analog Amperemeter
Model : 91C4-A
Measuring Ampere Range : DC 0-20A
Accuracy : Class 5
Work Temperature : -20~+ 50C
Relative Humidity : ?85%

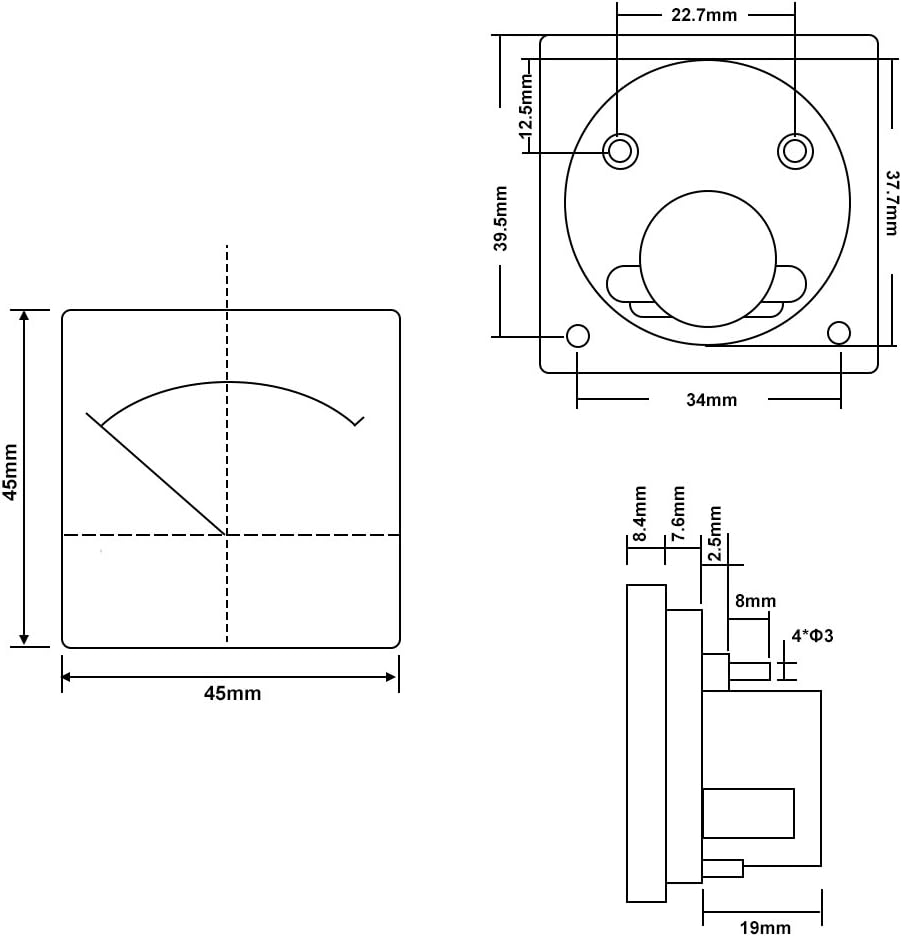

Meter Panel Size(Approx) : 1.7 x 1.7 x 1.3 inch / 45 x 45 x 35 mm(L*W*T)
Mount Size : 1.5 x 1.5 inch / 37.7 x 37.7 mm
Net Weight : 1 oz / 30g
Color : White
This ammeter need to work with a 75mV shunt, which is not included here.
The device should not be knocked or shaken.
Measures amper range of 0-20A with accuracy of Class 5.
Clear and easy to read scale and a button for fine tuning the dial.
Needle Ampere Panel Meter for electronic applications or other Voltage measurement devices.
Specifications:
Product Name : Analog Amperemeter
Model : 91C4-A
Measuring Ampere Range : DC 0-20A
Accuracy : Class 5
Work Temperature : -20~+ 50C
Relative Humidity : ?85%
Meter Panel Size(Approx) : 1.7 x 1.7 x 1.3 inch / 45 x 45 x 35 mm(L*W*T)
Mount Size : 1.5 x 1.5 inch / 37.7 x 37.7 mm
Net Weight : 1 oz / 30g
Color : White
